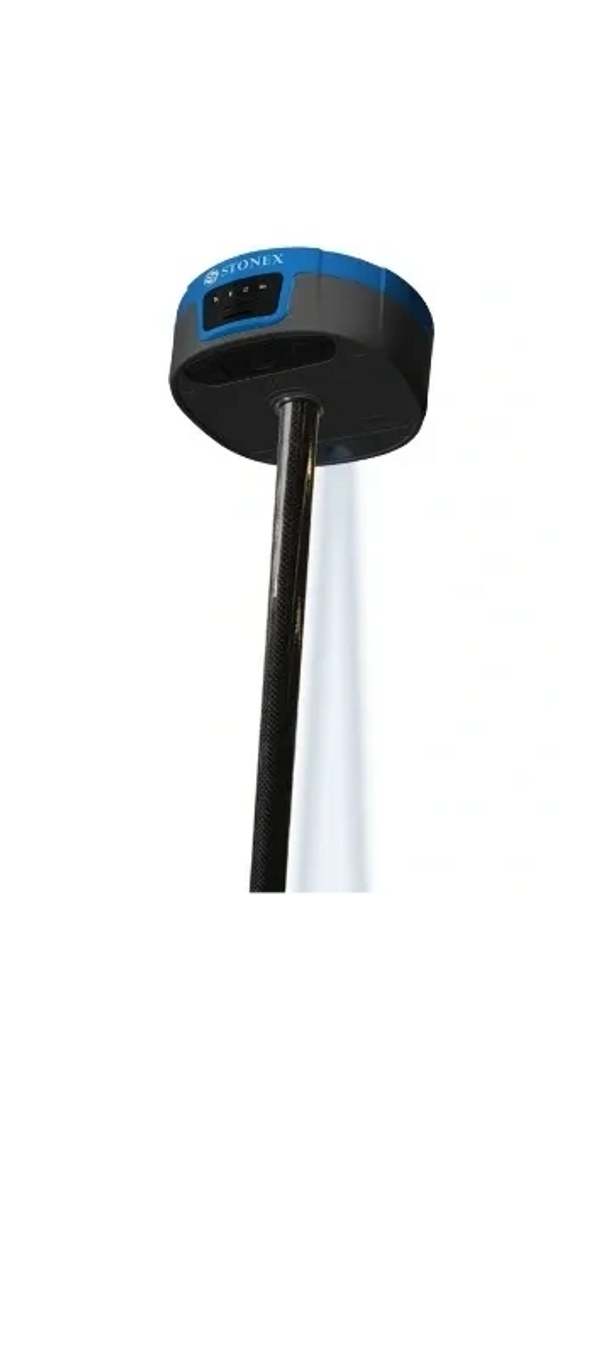

Stonex S880 GNSS Receiver

The S880 is a versatile and advanced GNSS receiver that caters to the needs of various applications, including surveying, mapping, and navigation. One of its key features is the integration of a bottom stakeout camera, which provides the operator with real-time visual assistance to identify the point to be staked out.

The S880 incorporates cutting-edge technology to deliver exceptional performance. It boasts a 2W radio transceiver, a positioning speed of 20Hz, and an integrated IMU, ensuring precise position updates. The device’s 8GB memory capacity resolves any storage issues, while the 4G modem ensures reliable connectivity.

The S880 is designed to withstand challenging environments. It can function perfectly in temperatures ranging from -40°C to +65°C and has an IP68 rating for water and dust resistance.

Additionally, the device is drop-resistant up to 1.5 meters, ensuring reliability even in difficult conditions. Despite its robust capabilities, the S880 maintains a lightweight design of approximately 730g, making it highly portable without compromising resistance. The long-lasting battery guarantees uninterrupted operation for at least 10 hours, further enhancing the device’s versatility and convenience

The S880 is equipped with a camera that captures the real-world scene. This camera can be used for user-activatable AR stakeout, when needed. The camera provides real-scene navigation, displaying the distance to the target point. Cube-a’s interface uses visual tools to guide the surveyor to the exact stake position. There is a graphic element that indicates the direction of the point and the distance. The graphic elements vary depending on the distance that the operator has from the point to be staked out.
